SYBR 6002-2RS Deep Groove ball bearings for bikes
Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!
Description
Technical
Application
Pictures
SYBR 6002-2RS Deep Groove ball bearings for bikes
Ball bearings for bikes are machined components that include an outer ring, inner ring, balls, retainers, shields and snap rings. miniature ball bearings are available in inch and metric sizes, open or shielded and flanged or unflanged. For extreme noise sensitive applications, superior hardness and corrosion resistance our ball bearings are manufactured with DD400™ stainless steel material. Single-row deep groove ball bearings are the most common type of rolling bearings. Their use is very widespread.
In addition to open type bearings, these bearings often have steel shields or rubber seals installed on one or both sides and are prelubricated with grease. Also, snap rings are sometimes used on the periphery. As to cages, pressed steel ones are the most common.

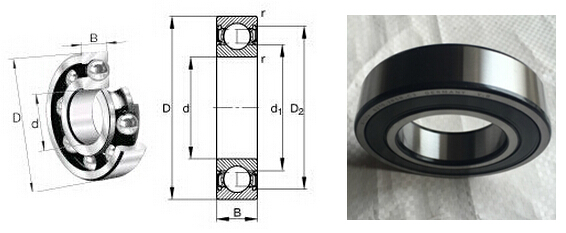

| d | 20 |
| D | 47 |
| B | 14 |
| r (mm) | 1 |
| Cr (KN) | 12.8 |
| Cor (KN) | 6.65 |
| Limiting Speed (Z,ZZ,RU,2RU) | 15000 |
| Limiting Speed (RD,2RD) | 14000 |
| Limiting Speed (RS,2RS) | 9700 |
| Limiting Speed Oil | 17000 |
| Bearing Code | 6002-2RS |
| da (min) | 25 |
| da (Max) | 26.5 |
| Da (Max) | 42 |
| ra (Max) | 1 |
| Mass (KG) | 0.106 |
SYBR 6002-2RS Deep Groove ball bearings for bikes models series :
Models reference :
Other types ball bearings reference :
1) Model:2RS
2) Quality level: reach the same level as the Japanese and European bearings
3). Noise rank: Z3
4). Internal elimination code: C3
5).Presion :P6
6). Bearing material: bearing steel ( stainless steel)
7). Keeper: stainless steel, PTFE, nylon
8). Bearing ferrule and ball hardness: 59 - 63HRC
9).Service:OEM service acceptable
10).High quality and timely delivery
Models reference :
6000-2RS 6001-2RS 6002-2RS 6900-2RS
6901-2RS 6902-2RS 6903-2RS 15267-2RS
17287-2RS 6800-2RS 6801-2RS 6802-2RS
6803-2RS 6804-2RS 6805-2RS 6806-2RS
Other types ball bearings reference :
| Models | sealed type | d | D | B |
| 6205ZZ | Shielded | 25.0000 | 52.0000 | 15.0000 |
| 6305 | Open | 25.0000 | 62.0000 | 17.0000 |
| 6305-2RS | Sealed | 25.0000 | 62.0000 | 17.0000 |
| 6305ZZ | Shielded | 25.0000 | 62.0000 | 17.0000 |
| 6006 | Open | 30.0000 | 55.0000 | 13.0000 |
| 6006-2RS | Sealed | 30.0000 | 55.0000 | 13.0000 |
| 6006ZZ | Shielded | 30.0000 | 55.0000 | 13.0000 |
| 6206 | Open | 30.0000 | 62.0000 | 16.0000 |
| 6206-2RS | Sealed | 30.0000 | 62.0000 | 16.0000 |
| 6206ZZ | Shielded | 30.0000 | 62.0000 | 16.0000 |
| 6306 | Open | 30.0000 | 72.0000 | 19.0000 |
| 6306-2RS | Sealed | 30.0000 | 72.0000 | 19.0000 |
| 6306ZZ | Shielded | 30.0000 | 72.0000 | 19.0000 |
| 6007 | Open | 35.0000 | 62.0000 | 14.0000 |
| 6007-2RS | Sealed | 35.0000 | 62.0000 | 14.0000 |
| 6007ZZ | Shielded | 35.0000 | 62.0000 | 14.0000 |
| 6207 | Open | 35.0000 | 72.0000 | 17.0000 |
| 6207-2RS | Sealed | 35.0000 | 72.0000 | 17.0000 |
| 6207ZZ | Shielded | 35.0000 | 72.0000 | 17.0000 |
| 6307 | Open | 35.0000 | 80.0000 | 21.0000 |
| 6307-2RS | Sealed | 35.0000 | 80.0000 | 21.0000 |
| 6307ZZ | Shielded | 35.0000 | 80.0000 | 21.0000 |
| 6008 | Open | 40.0000 | 68.0000 | 15.0000 |
| 6008-2RS | Sealed | 40.0000 | 68.0000 | 15.0000 |
| 6008ZZ | Shielded | 40.0000 | 68.0000 | 15.0000 |
SYBR 6002-2RS Deep Groove ball bearings for bikes application:
Original Package:
1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2):Small sizes:Plastic Tube + Carton
3):Big sizes:Wooden Case

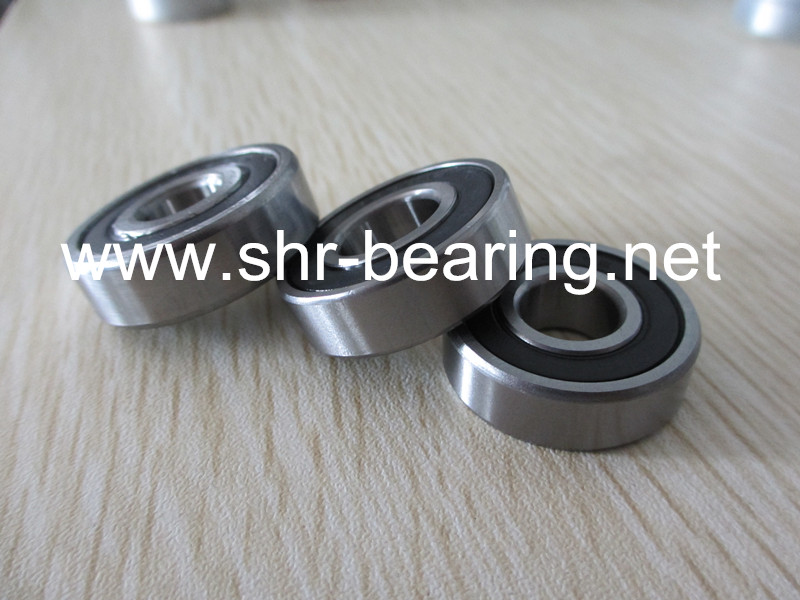

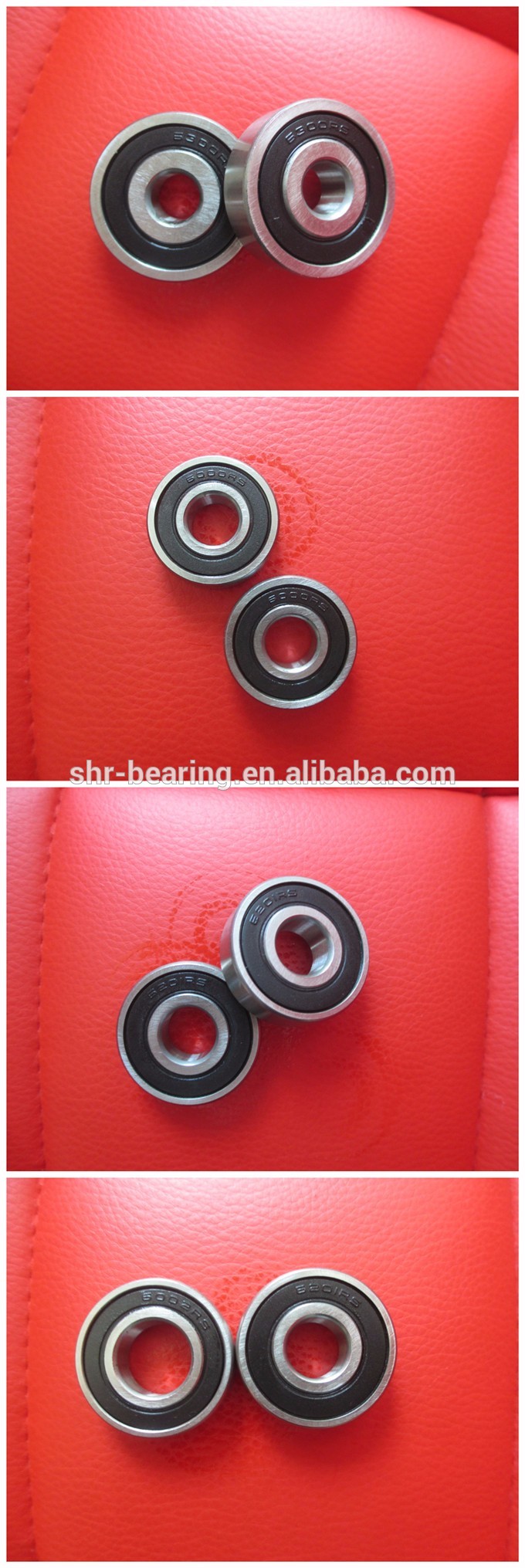

SYBR 6002-2RS Deep Groove ball bearings for bikes photos :
Bearing other series product range:
1. Deep Groove Ball Bearings (Single) 1600, 623, 607, 6000
2. Deep Groove Ball Bearings (Single) 6200 Series
3. Deep Groove Ball Bearings (Single) 6300, 6400 Series
4. Angular Contact Ball Bearings (Duplex) 3200, 3300, 5200, 5300 Series
5. Deep Groove Ball Bearings (Double) 4200, 4300
6. Angular Contact Ball Bearings (Single) 7200, 7300 Series
7. Self Aligning Ball Bearings 1200, 1300, 2200, 2300 Series
8. Spherical Roller Bearings 21300, 22200 Series
9. Spherical Roller Bearings 22300, 23200 Series
10. Trust Ball Bearings 5110, 51200 Series
11. Taper Roller Bearings 302 Series
12. Taper Roller Bearings 303 Series
13. Taper Roller Bearings 313 Series
14. Taper Roller Bearings 320 Series
15. Taper Roller Bearings 322 Series
16. Taper Roller Bearings 323 Series
17. Taper Roller Bearings (Imperial Sizes Supplied Separately)
18. Pillow Blocks (Normal Duty) UCP 200 Series
19. Pillow Blocks (Medium Duty) UCP X00 Series
20. Flange Units (Normal Duty) UCF 200 Series
21. Flange Units (Medium Duty) UCF X00 Series
22. Flange Units (Normal Duty) UCFL 200 Series
23. Pillow Blocks (Light Duty Pressed Steel Housing) SBP - SAP Series
24. Flange Units (Light Duty Pressed Steel Housing) SBFL, SAFL Series
25. Flange Units (Light Duty Pressed Steel Housing) SBF - SAF Series
26. Ball Bearings UC200, CUC 200 Series
27. Ball Bearings (With Eccentric Locking Collar) SA200, CSA200 Series
28. Ball Bearings SB200, CSB200 Series
29. Disc Harrow Bearings W 200 Series
30. Ball Bearings Units (Load Rating Data)
31. Take-up Units (Normal Duty) UCT 200, UCST 200 Series
32. Plumber Blocks SN/SSN500, SN/SSN600 Series
33. Plumber Blocks (Sealing Arrangements)
34. Plumber Blocks (Application References)
35. Plumber Blocks SNU 500 - 600 Series
36. Plumber Blocks SD3100 Series
37. Plumber Blocks (Application References)
38. Adaptor Sleeves H2 & H3 Series
39. Adaptor Sleeves H23 Series
40. Adaptor Sleeves H31 & H32 Series
