NACHI E5010NR Japan technique Jib Crane Bearings are Single row full complement cylindrical roller bearings which has solid outer and inner rings together with rib-guided cylindrical rollers. Since these bearings have the largest possible number of rolling elements, they have extremely high radial load carrying capacity, high rigidity and are suitable for particularly compact designs. E50 bearing series The design of the bearing series for crane pulley.It is coated bearing a seal (seal or dust cover). E50 series with two dust covers E50 ... NR and the E50 ... NRNT in the two snap ring groove in outer ring E50 ... NR with two dust cover, E50 ... NRNT,, with two rubber seals .
Cylindrical roller bearings E5010NR
Bearing number : E5010NR
Size (mm) : 50x80x40
Brand : NACHI
Bore Diameter (mm) : 50
Outer Diameter (mm) : 80
Width (mm) : 40

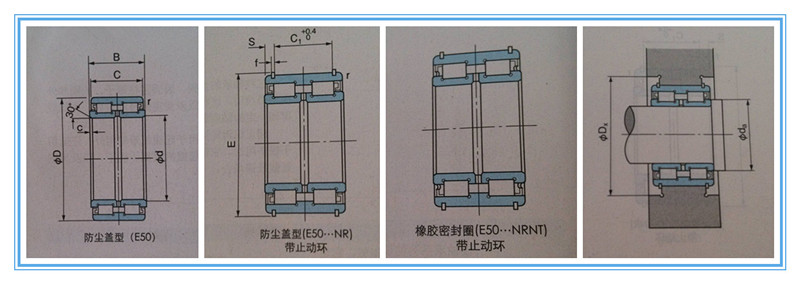

Bearing dimensions and specification in brand catalogue :
d - 50 mm
D - 80 mm
B - 40 mm
C - 39 mm
c - 1.5 mm
f - 2 mm
r min. - 0.6 mm
C1 - 30 mm
E - 83.8 mm
S - 4.5 mm
Weight - 0.75 Kg
Basic dynamic load rating (C) - 99,5 kN
Basic static load rating (C0) - 158 kN
(Grease) Lubrication Speed - 2000 r/min
| Without Closing Ring and with seal | Closing Ring and Seal | Closing Ring and Rubber Seal |
| E5008 | E5008NR | E5008NRNT |
| E5009 | E5009NR | E5009NRNT |
| E5010 | E5010NR | E5010NRNT |
| E5011 | E5011NR | E5011NRNT |
| E5012 | E5012NR | E5012NRNT |
| E5013 | E5013NR | E5013NRNT |
| E5014 | E5014NR | E5014NRNT |
| E5015 | E5015NR | E5015NRNT |
| E5016 | E5016NR | E5016NRNT |
| E5017 | E5017NR | E5017NRNT |
| E5018 | E5018NR | E5018NRNT |
| E5019 | E5019NR | E5019NRNT |
| E5020 | E5020NR | E5020NRNT |
| E5022 | E5022NR | E5022NRNT |
| E5024 | E5024NR | E5024NRNT |
| E5026 | E5026NR | E5026NRNT |
| E5028 | E5028NR | E5028NRNT |
| E5030 | E5030NR | E5030NRNT |
| E5032 | E5032NR | E5032NRNT |
| E5034 | E5034NR | E5034NRNT |
| E5036 | E5036NR | E5036NRNT |
| E5038 | E5038NR | E5038NRNT |
| E5040 | E5040NR | E5040NRNT |
| E5044 | E5044NR | E5044NRNT |
| E5048 | E5048NR | E5048NRNT |
| E5052 | E5052NR | E5052NRNT |
| E5056 | E5056NR |
E5056NRNT |
NACHI E5010NR Japan technique Jib Crane Bearings application :
Full-complement cylindrical roller bearings for crane sheaves
Gear box producers
Transmission motor producer
Steel industry
Producers for construction equipment
Forest technology
Synthetic material industry
Machine tool producers
Producers of measuring devices and dividing units
Rotary table manufactures
Maritime industry
Metal forming technology
Crane sheave on the sea
Deck crane
Transmission
Planetary speed reducer
Packing :
Packing :
1) Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2) Small sizes:Plastic Tube + Carton
3) Big sizes:Wooden Case
