NSK BB17-1K One Way Cam Clutch Bearing Supplier

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!

Description

Technical

Application

Pictures

One way cam clutch bearings introduction:

One-way bearing is free to rotate in one direction, while in the other direction on a bearing locked. One-way bearings inside the metal shell that contains lots of roller, needle or ball, and the rolling seat (hole) shape so that it can only scroll in one direction, while in the other direction will have great resistance.

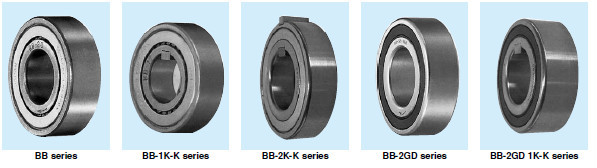

One way cam clutch bearing features:

1. Bearing type Cam Clutch series are designed for press fit installation.
2. BB-1K and BB-2GD 1K series have a keyway on the inner race. Keyways, except size 25 are manufactured by DIN 6885. 3, BB40-1K and BB40-2GD 1K is manufactured by DIN 6885. 1.
3. BB-2K series has a keyway on both the inner and outer race.
4. Correct interference dimensions at the shaft and the housing must be maintained to obtain maximum bearing and clutch performance.
5. Refer to the table in next page for tolerance of the shaft and housing for each series.
6. BB-2GD and BB-2GD 1K series have special lip seals for the effective protection against dust.
7. The arrow on the inner race shows the direction of inner race engaging.
8. To install the clutch, use a press tool of the appropriate diameter to apply even pressure over the entire face of the inner and outer race.
9. Do not hammer or apply other shock to the clutch.
10. Make sure the housing has enough strength to withstand the pressure required for the press fitting installation of the Clutch.
11. Operating temperature range: –30°C to +100°C (Consult us for the temperature that exceeds this range)

Lubrication

1. Since grease is already applied before delivery, there is no need to apply and grease before use.
2. If the clutch is used with an oil lubricant, the oil lubrication should be applied inside the unit always.
3. Do not use greases or lubricants with EP additives.

One way cam clutch bearings design:

Name	Value
Brand	NSK,SYBR ,OEM
Model	BB17-1K
Production Capacity	50000 Piece/Pieces per Month
Automatic Grade	P6 P5 P4
Material	GCr15
name	one way bearing
Place of Origin	China
Year	2016
Certification	ISO9001:2000
Weight	0.07kg

One way cam clutch bearings for your reference:

Type	Size	Bearing series							Bearing loads		Weight	Drag torque
Type	Size	Bearing series							dynamic	static		Drag torque
CSK..P (BB..-1K ) (KK..P) (OW..P)	d		TKN1)	nmax	D	L	b	t	C	C0		TR
	[mm]		[Nm]	[min-1]	[mm]	[mm]	[mm]	[mm]	[kN]	[kN]	[kg]	[Ncm]
	12	6201	9.3	10000	32	10			6.1	2.77	0.04	0.7
	15	6202	17	8400	35	11			7.4	3.42	0.06	0.9
	17	6203	30	7350	40	12			7.9	3.8	0.07	1.1
	20	6204	50	6000	47	14			9.4	4.46	0.11	1.3
	25	6205	85	5200	52	15			10.7	5.46	0.14	2
	30	6206	138	4200	62	16			11.7	6.45	0.21	4.4
	35	6207	175	3600	72	17			12.6	7.28	0.3	5.8
	40	–	325	3000	80	22			15.54	12.25	0.5	7
CSK..PP (BB..-2K) (KK..PP) (OW..PP)	15	6202	17	8400	35	11	2	0.6	7.4	3.42	0.06	0.9
	17	6203	30	7350	40	12	2	1	7.9	3.8	0.07	1.1
	20	6204	50	6000	47	14	3	1.5	9.4	4.46	0.11	1.3
	25	6205	85	5200	52	15	6	2	10.7	5.46	0.14	2
	30	6206	138	4200	62	16	6	2	11.7	6.45	0.21	4.4
	35	6207	175	3600	72	17	8	2.5	12.6	7.28	0.3	5.8
	40	–	325	3000	80	22	10	3	15.54	12.25	0.5	7
CSK..P-2RS (BB..-2GD-1K) (KK..P-2RS) (OW..P-2RS)	12	–	9.3	10000	32	14			6.1	2.77	0.05	3
	15	–	17	8400	35	16			7.4	3.42	0.07	4
	17	–	30	7350	40	17			7.9	3.8	0.09	5.6
	20	–	50	6000	47	19			9.4	4.46	0.145	6
	25	–	85	5200	52	20			10.7	5.46	0.175	6
	30	–	138	4200	62	21			11.7	6.45	0.27	7.5
	35	–	175	3600	72	22			12.6	7.28	0.4	8.2
	40	–	325	3000	80	27			15.54	12.25	0.6	10

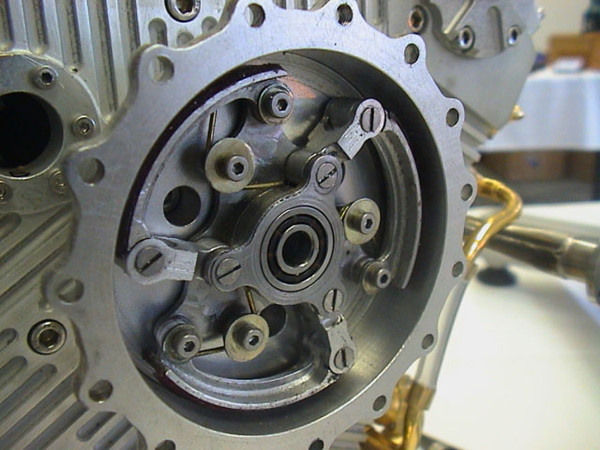

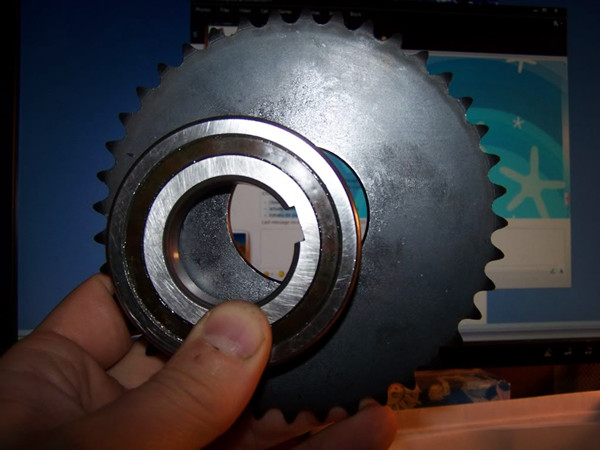

Application for ball bearing one way clutch bearing:

• Paper moving for copiers, fax machines, paper towel dispensers, etc.
• Exercise equipment,back stop applications.
• Appliances,free wheel drives ,starter systems.
• Two-speed gearboxes
• Rack indexing drives
• Converters, non-return devices and transcendental clutches.
• Fishing Reels, RC Cars, RC Helis, RC Engines

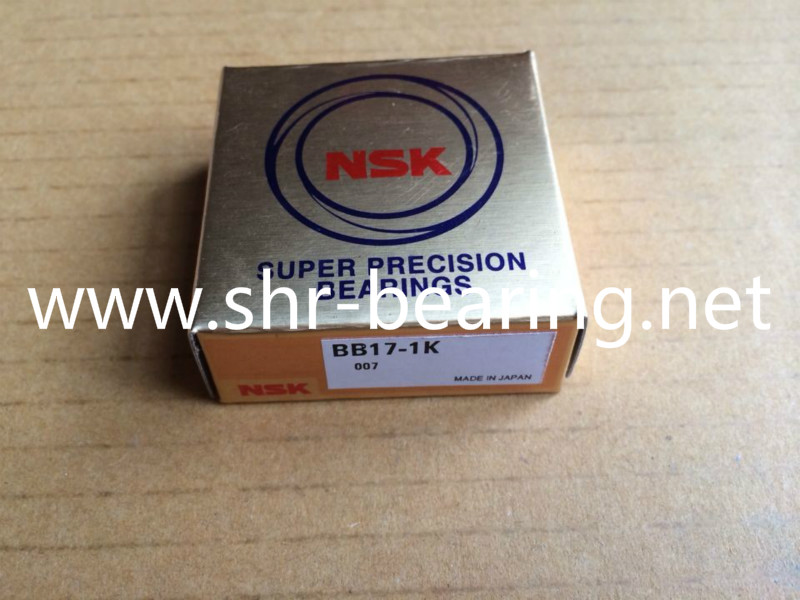

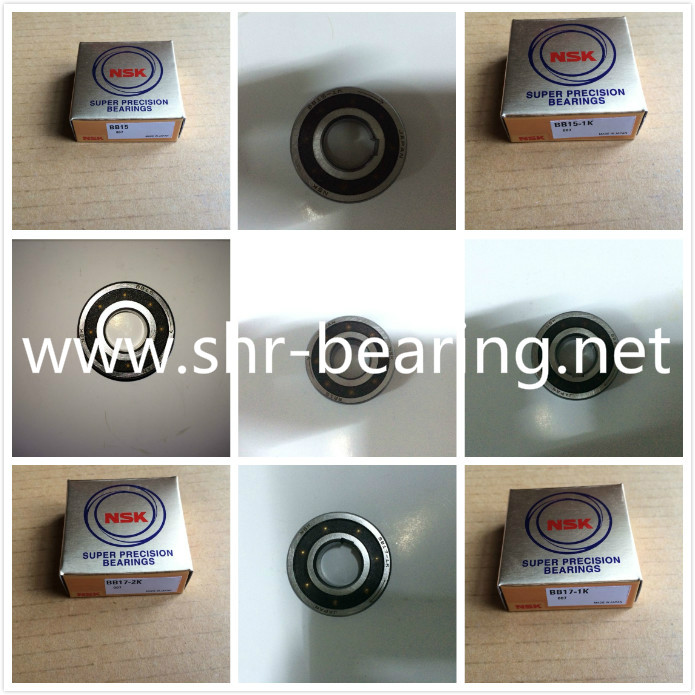

NSK one way cam clutch bearing BB Series Pictures:

NSK one way cam clutch bearing packing and shipping:

1. For small ones:anti-rust oil+vacuum plastic bag+paper box+wooden box

2. For big ones:anti-rust oil+waterproof belt+professional belt+wooden box

Payment Terms:

L/C ,T/T ,western Union

1. 30% deposit By T/T, Western Union, Paypal, 70% before delivery.

2. 100% L/C at sight

Other information:

Production Lead time: 7~25days; If we have this item in stock , 2days delivery.

Delivery Date: within 3-5days after your payment.

Sample: Free, but we don't bear the freight of sample

MOQ: 1 set Supply Ablility:100000 pcs/Month
