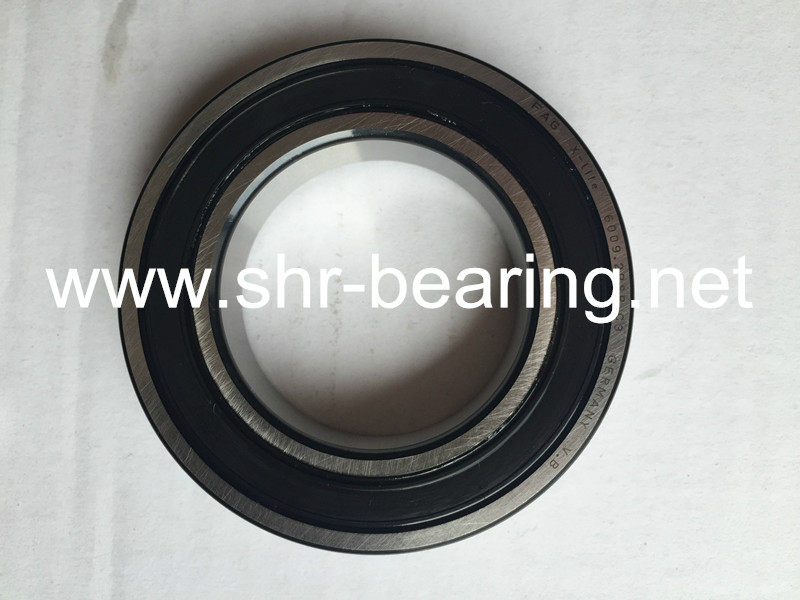

SYBR 6009-2RS Deep groove ball bearing units

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!

Description

Technical

Application

Pictures

Deep groove ball bearings can be divided into below Types according to their natures:
A:single row deep groove ball bearings ,
B:double row deep groove ball bearing
C:Full ceramic Single row deep groove ball bearings,
D:stainless steel single row deep groove ball bearings
E:inch deep groove ball bearings,
F:miniature deep groove ball bearings.
G:Thin section deep groove ball bearings.
Features:
Deep groove ball bearing is one of the largest bearing catalogs in rolling bearing.it is widely used in various kinds of machines. In additon, ball bearing is also one of the cheapest bearing type in all kinds of bearings.It’s also the widely used industrial bearings .
The main available materials of ball bearings are such as :stainless steel, chrome steel, and ceramic (silicon nitride (Si3N4)). A hybrid ball bearing is a bearing with ceramic balls and races of metal.
There are different kinds of Cages for your reference :Steel, Nylon, Polyimide, Phenolic, Peek, Bakelite, GFRPA66-25, PI, AISI, US304, SUS316, Cu or Bronze.

Characteristics		ZZ	2RZ	2RS1
Low friction torque		Good	Good	Fair
High speed		Good	Good	Fair
Sealed grease lubrication		Fair	Good	Excellent
Dust proof		Fair	Good	Excellent
Water proof		Poor	Fair	Good

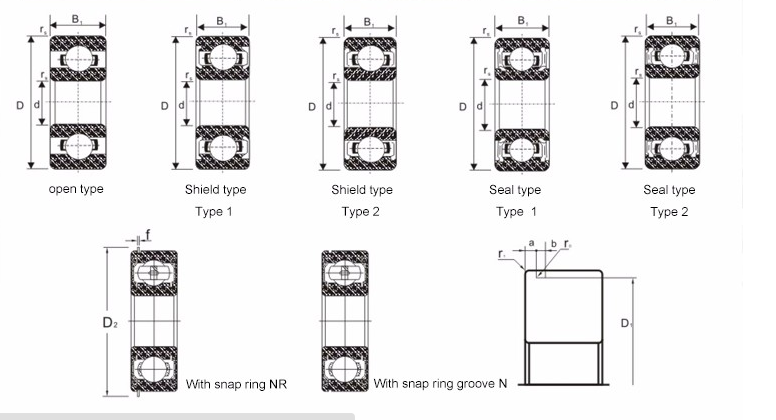

series	Diameter mm	Variant Structure
61800	10-1200	Z,2Z,RZ,2RZ
61900	10-1000	Z,2Z,RZ,2RZ,N,NR,ZN,RZN
16000	10-1000
6000	10-1000	Z,2Z,RZ,2RZ,RS1,2RS1,N,NR,ZN,RZN
6200	10-1400	Z,2Z,RZ,2RZ,RS1,2RS1,N,NR,ZN,RZN
6300	10-1200	Z,2Z,RZ,2RZ,RS1,2RS1,N,NR,ZN,RZN
6400	10-1200	N.NR
Miniature series	1-10	2Z RS 2RS F6000

N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
	mm	mm	mm	mm	Dynamic	Static	Grease	Oil	Kg/pcs
	mm	mm	mm	mm	Cr	Cor	r/min	r/min	Kg/pcs
604	4	12	4	0.2	0.97	0.36	36000	44000	0.0021
605	5	14	5	0.2	1.33	0.505	32000	40000	0.0035
606	6	17	6	0.3	2.19	0.865	30000	38000	0.006
607	7	19	6	0.3	2.24	0.91	28000	36000	0.008
608	8	22	7	0.3	3.35	1.4	26000	34000	0.012
609	9	24	7	0.3	3.4	1.45	24000	32000	0.014
6000	10	26	8	0.3	4.55	1.96	22000	30000	0.019
6001	12	28	8	0.3	5.1	2.39	19000	26000	0.021
6002	15	32	9	0.3	5.6	2.83	18000	24000	0.03
6003	17	35	10	0.3	6.8	3.35	17000	22000	0.039
6004	20	42	12	0.6	9.4	5.05	15000	19000	0.069
6005	25	47	12	0.6	10.1	5.85	14000	18000	0.08
6006	30	55	13	0.6	13.2	8.3	12000	15000	0.116
6007	35	62	14	1	16	10.3	10000	14000	0.115
6008	40	68	15	1	16.8	11.5	8000	11000	0.19
6200 Series Miniature Deep Groove Ball Bearing
N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
	mm	mm	mm	mm	Dynamic	Static	Grease	Oil	Kg/pcs
	mm	mm	mm	mm	Cr	Cor	r/min	r/min	Kg/pcs
624	4	13	5	0.2	1.15	0.4	36000	45000	0.0032
625	5	16	5	0.3	1.76	0.68	32000	40000	0.005
626	6	19	6	0.3	2.34	0.885	28000	36000	0.008
627	7	22	7	0.3	3.35	1.4	26000	34000	0.013
628	8	24	8	0.3	4	1.59	24000	32000	0.017
629	9	26	8	0.3	4.55	1.96	22000	30000	0.019
6200	10	30	9	0.6	5.1	2.39	19000	26000	0.03
6201	12	32	10	0.6	6.1	2.75	18000	24000	0.036
6202	15	35	11	0.6	7.75	3.6	17000	22000	0.046
6203	17	40	12	0.6	9.6	4.6	16000	20000	0.065
6204	20	47	14	1	12.8	6.65	14000	18000	0.107
6205	25	52	15	1	14	7.85	12000	16000	0.125
6206	30	62	16	1	19.5	11.3	10000	13000	0.201

Application

1. Material handling machinery:mining machinery, textile machinery, lifting equipment, Agricultural machinery: tractors, harvesting machinery, etc.

2.Heavyduty mining machinery: metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial vehicles, cement equipment, etc.

3. Construction Machinery: forklifts, earth moving machinery, compaction machinery, concrete machinery, etc

4.The general petrochemical machinery: oil drilling machinery, oil refining machinery, chemical machinery, gas compressors, paper machinery, printing machinery, etc

5.Machine tools: forging machinery, foundry machinery, woodworking machinery, etc.

6.Car: truck, road, bus, car, modified car, motorcycle ,etc.

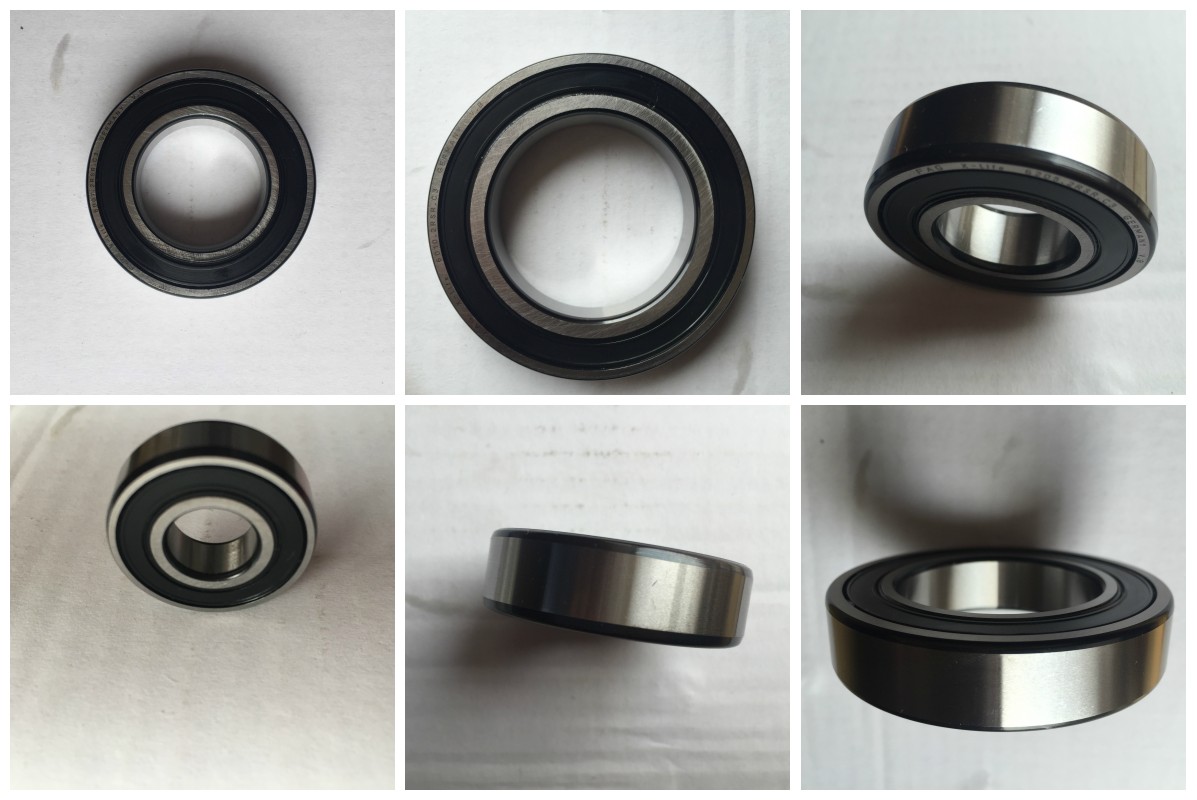

Pictures of deep groove ball bearings

Delivery

Our advantage

Customers with us

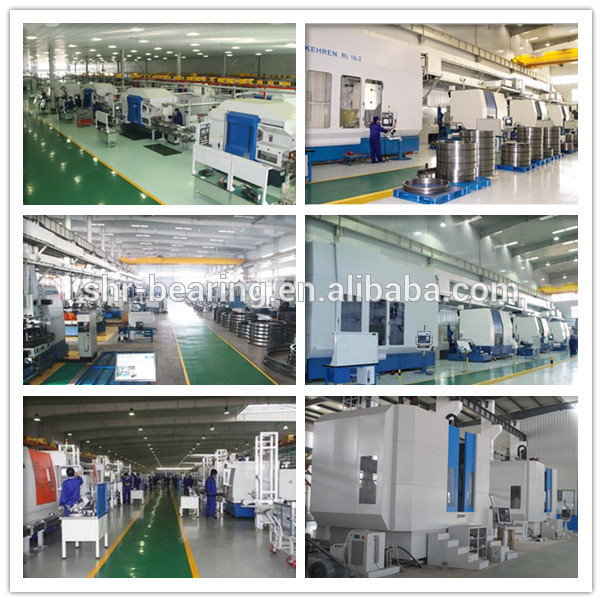

Our factory
