SYBR QJ309 angular contact ball bearings high quality bearings

> > >

SYBR QJ309 angular contact ball bearings high quality bearings

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!
needle roller bearing
CARB toroidal roller bearings
thrust roller bearings
Deep groove ball bearings
Angular contact ball bearings
Thrust ball bearings
Self-aligning ball bearing
Y-bearing
Description
Technical
Application
Pictures

Type of angular contact ball bearings:

a=15 °7000C

a=25 °7000AC

a=40 °7000B

1) Single row angular contact ball bearing

2) Double row angular contact ball bearing

3) Four-point angular contact ball bearing



Advantages of Angular Contact Ball Bearing:

1.Ultra clean steel to extend bearing life by up to 80%

2.Advanced grade technology

3.Quiet and smooth operation even at high speed

4.Super finished raceways

5.Offer products in 15,25 and 40 degree angles

6.Available in arrange of steel and brass cage assembles

QJ four point angular contact ball bearing is a kind of bidirectional single row angular contact ball bearing.
 As a result of the special design the groove in the inner and outer ring,it has two contact points with 35 or 45 contact angle
 between every groove and ball,

and so the products can bear bidirectional axial load. It has high limited speed and is suitable for the high-speed operation.

It allow the bearing to load a number of balls due to its combined inner ring with double half rings,thus giving a higher load bearing capacity.



Model No

Four point angular ball bearing

Brand Name

SYBR

Type

Spindle Bearing(angular contact ball bearing)

Material

GCr15

Quality Certificate

ISO9001:2000

Cage

brass and nylon

Packing

original packing

Application

Steel Industry, Mining&Construction, Paper making Machinery,vibrating screens, shakers, conveyors,

Features:

high precision, high speed, long life, high reliability,  low noise

Certificate

ISO 9001:2008

Service:

Our purpose is to service: the customer first, integrity-centered, warm-heart service, to your satisfaction.


Type

d

D

B

Mass

(mm)

(Kg)

QJ206

30

62

16

0.24

QJ306

30

72

19

0.42

QJ207

35

72

17

0.35

QJ307

35

80

21

0.57

QJ208

40

80

18

0.45

QJ308

40

90

23

0.78

QJ209

45

85

19

0.52

QJ309

45

100

25

1.05

QJ210

50

90

20

0.59

QJ310

50

110

27

1.35

QJ211

55

100

21

0.77

QJ311

55

120

29

1.75

QJ212

60

110

22

0.98

QJ312

60

130

31

2.15

QJ213

65

120

23

1.2

QJ313

65

140

33

2.7

QJ214

70

125

24

1.3

QJ314

70

150

35

3.18

QJ215

75

130

25

1.5

QJ315

75

160

37

3.9

QJ1016

80

125

22

1.05

QJ216

80

140

26

1.85

QJ316

80

170

39

4.6

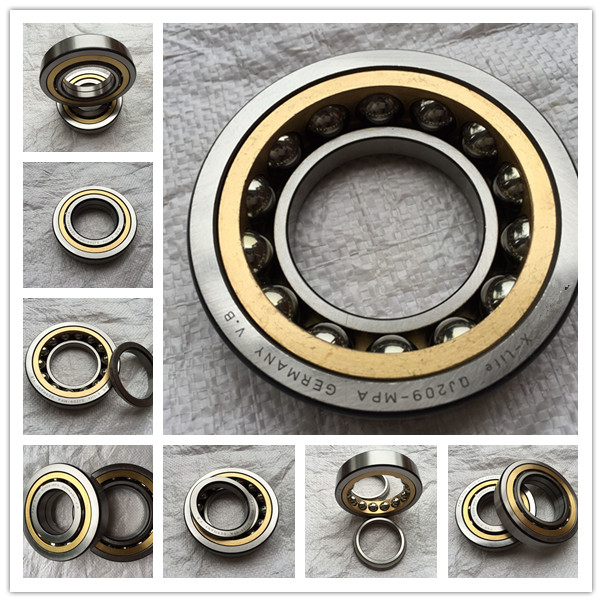

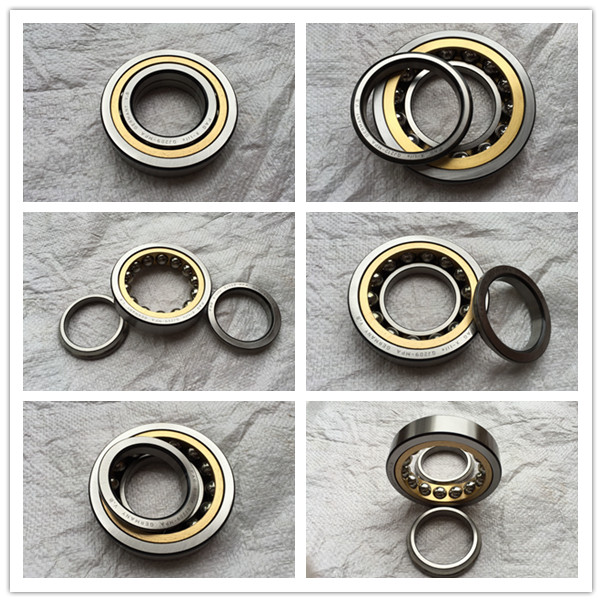

Pictures of Four-point angular contact ball bearing
