SYBR UCP201 Pillow block bearings chinese bearings

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!

Description

Technical

Application

Pictures

Detail information of the pillow block bearings

Pillow blocks are usually referred to the housings which have a bearing fitted into them and thus the user need not purchase the bearings separately.
Pillow blocks are usually mounted in cleaner environments and generally are meant for lesser loads of general industry.

Different types of bearing housings
1)Pillow blocks – these include UCP, HCP, UCLP, UKP, UCPX, and UKPX.
These mounted bearings are used when support for a rotating shaft axis is required. Their design enables them to support the shaft in operations
where the mounting surface is parallel to the shaft axis.

2)Flange type– includes UCF, HCF, UKF, UCFX, UKFX, UCFU, UCFC, UKFC, UCFS, UCFL, UKFL, UCFT.
The flange type bearing housing comes in various shapes and styles such as square, round, and rhombus flange types.

3)Take-up units type - UCT, HCT, and UKT.
These bearing housings have an inner surface which is concave sphered hence the bearing used has a convex sphered outer surface.
They are designed to permit moderate initial misplacement. Widely used in conveyor chains and conveyor belts.
A sliding slot at the side of the housing facilitates the free movement of the unit.

4)Cartridge type – UCC, HCC, and UKC.
This type of bearing housing has a cylindrical outer perimeter hence the bearing outer bore is spherical. The entire unit allows free movement
in the axial direction and is self-aligning. This type can be used as free side bearings for long shafts because they are capable of accommodating shaft expansion or contraction
due to temperature differences. Also suitable where there is adjustment of the axial direction is required.

5)Light duty types SAFD, SBFD, SAFW, SBFW, SALF, and SBLF.

Application of the pillow block bearings

1.Economical housed bearing solution

2.Light and heavy industrial use Pillow Block Bearing
3.Agricultural and Automotive Pillow Block Bearing
4.Conveyor and Fan assemblies Pillow Block Bearing
5.Fabricated machine assembly Pillow Block Bearing
6.Great value quality parts dispatched the same day

Pillow block bearings Technical Parameters

Bearing	Pillow block bearings
Brand Name	SYBR
Bore Size	1-100(mm)
Outside Diameter	2-150(mm)
width	1-50(mm)
Material	Ring Material Chrome Steel ,Carbon steel,Stainless steel
Clearance	C0,C2,C3,C4,C5
Vibration	Zv1,Zv2 and Zv3
Precision Rating	P0,P6,P5
Greese	As you requirement, such as SRL ,PS2, Alvania R12 and so on
Number of Row	Single Row
Guarantee	1 year
Application	Home appliances, low noise and high speed electric motors,
Application	automotivecomponents, pumps, machinery.
Certifications	ISO 9001:2008, SASO,CE
Package	Single box or according to buyers requirement .
Place of Origin	China (Mainland)
MOQ	1 PCS
Payment Term	T/T or L/C or West Union

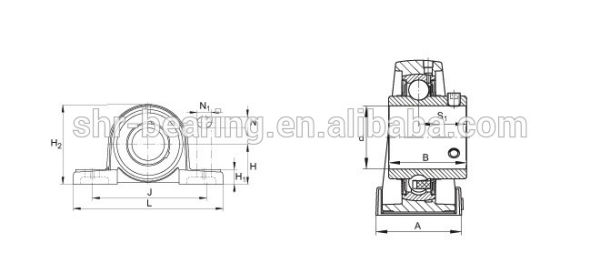

Bearing model	Length(mm)	Width(mm)	Thickness(mm)	Weight(kg)
UCP201 Bearing	127	38	60.7	0.76
UCP202 Bearing	127	38	60.7	0.74
UCP203Bearing	127	38	60.7	0.72
UCP204Bearing	127	38	64	0.70
UCP205 Bearing	140	38	69.5	0.76
UCP206 Bearing	160	44	82	1.25
UCP207 Bearing	167	48	92	1.55
UCP208 Bearing	180	52	98	1.90
UCP209 Bearing	189	54	106	2.20
UCP210 Bearing	204	57	112	2.75
UCP211 Bearing	217	60	125	3.30
UCP212 Bearing	238	66	137	4.70
UCP213 Bearing	262	70	149	5.60
UCP214 Bearing	266	72	155	6.60
UCP215 Bearing	274	74	162	7.30
UCP216 Bearing	292	78	174	9.00
UCP217 Bearing	310	83	186	10.80
UCP218 Bearing	326	88	198	13.00
UCP220 Bearing	380	95	225	16.00
UCP305 Bearing	175	45	85	1.40
UCP306 Bearing	180	50	95	1.80
UCP307 Bearing	210	56	106	2.80
UCP308 Bearing	220	60	116	3.08
UCP309 Bearing	245	67	129	4.10
UCP310 Bearing	275	75	143	6.00
UCP311 Bearing	310	80	154	7.40
UCP312 Bearing	330	85	165	9.40
UCP313 Bearing	340	90	176	10.00
UCP314 Bearing	360	90	187	12.00
UCP315 Bearing	380	100	198	14.00
UCP316 Bearing	400	110	210	18.00
UCP317 Bearing	420	110	220	20.00
UCP318 Bearing	430	110	220	24.00
UCP319 Bearing	470	120	250	26.50
UCP320 Bearing	490	120	275	34.30
UCP321 Bearing	490	120	280	36.60
UCP322 Bearing	520	140	300	42.50
UCP324 Bearing	570	140	320	53.50
UCP326 Bearing	600	140	355	72.10
UCP328 Bearing	620	140	390	89.10

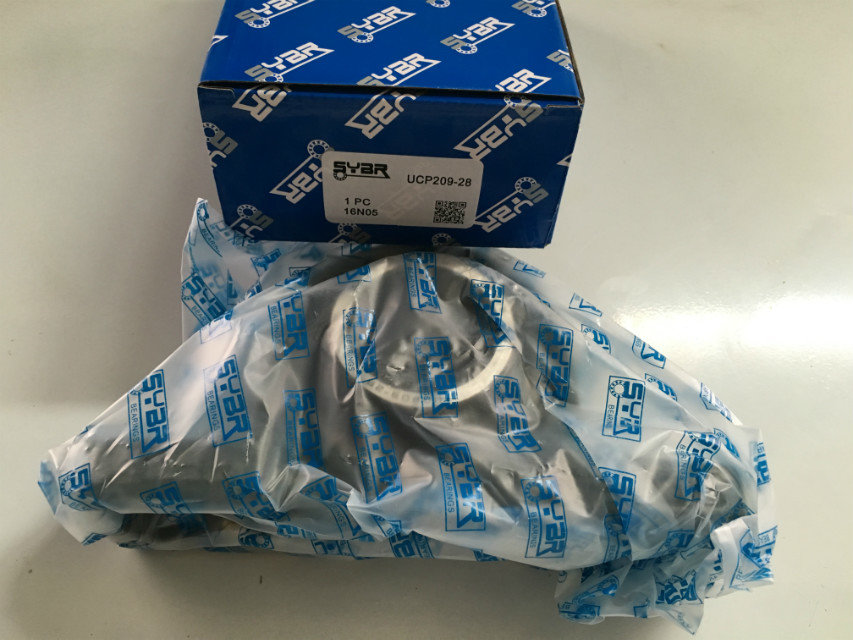

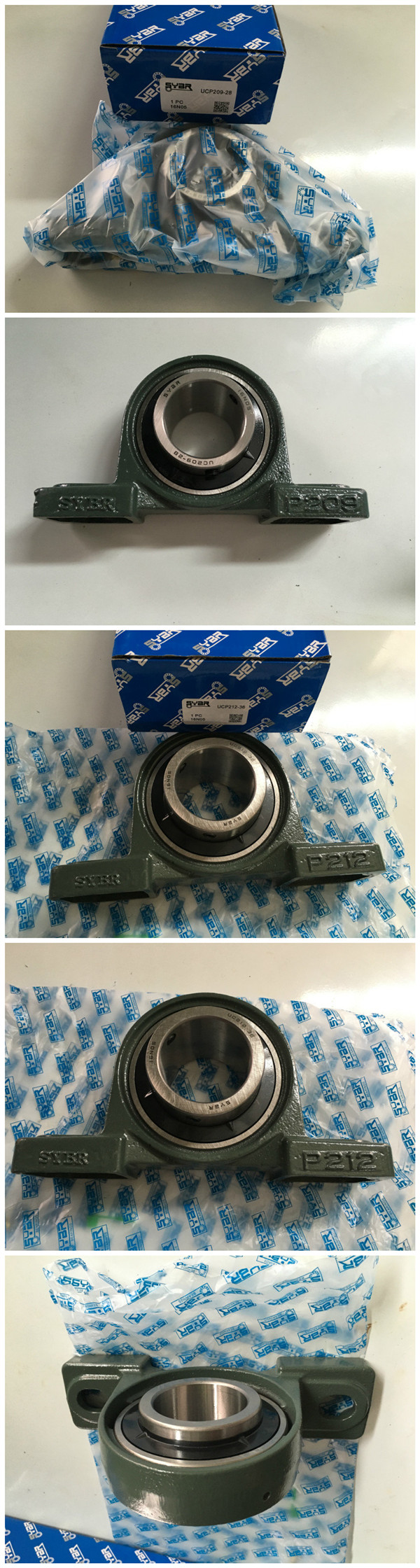

Pictures of pillow block bearings

Packaging

1. For small ones:anti-rust oil+vacuum plastic bag+paper box+wooden box

2. For big ones:anti-rust oil+waterproof belt+professional belt+wooden box

Delivery time:

Production Lead time:

a. there is stock for products: 3days

b. no in stock and semi-finished products: 25-35days

Delivery Date: within 3-5days after your payment.

Sample: Free, but we don't bear the freight of sample

MOQ: 1 set Supply Ablility:100000 pcs/Month

Shipping details

1) Less than 45 KGS, we will send by express.DHL/TNT/FEDEX/UPS/EMS ( Door to Door, Convenient )

2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )

3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )

2)Special line: (the Middle East special line /America special line)

Our davantage
