ASAHI UCT206 Pillow Block Insert Bearing UC206

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!

Description

Technical

Application

Pictures

UCT Pillow Block Bearings:

UCT200 with sliding block type tower top wire outer spherical ball bearing description:

The upper and lower two chute, can move back and forth on the frame, so the most suitable for the need to adjust the distance between the axis of occasions, mechanical axis can be mobile in operations. Used for belt, chain drive shaft. This type of bearing in Japan industrial standard JIS.

Brand	ASAHI UCT206 Pillow Block Bearing UC206
Item	Pillow Block Bearing UCT206 Bearing UC206 Ball Bearing T206 Solid Steel Blocks
Ball Bearing seals	ZZ 2RS
Material	GCr15 steel,carbon steel,stainless steel etc.
Precision	P0,P2,P5,P6,P4
Clearance	C0,C2,C3,C4,C5
Bore size	0-200 mm	outer diameter	0-400mm
Cage type	brass;steel plate,nylon,aluminium alloy etc.
Seal type	open,sealed(ZZ,RS,2RS)
Bearings Feature	Long-life with high quality
	Low-nosie with strict controlling the quality of SaiFan bearing
	High-load by the advanced high-technical design
	Competitive price, which has the most valuable
	OEM service offered, to meet the customers'requirements
Application	gearbox,auto,reduction box,engine machinery,mining machinery,bicycles,etc Insert Bearing Units With Housing

ASAHI UCT206 Pillow Block Bearings:

New Items	Old Items	Specification(dDB)	Weight(kg)
UCT201	90501	12×40×27.4	0.21
UCT202	90502	15×40×27.4	0.11
UCT203	90503	17×40×27.4	0.15
UCT204	90504	20×47×31	0.17
UCT205	90505	25×52×34	0.21
UCT206	90506	30×62×38.1	0.32
UCT207	90507	35×72×42.9	0.47
UCT208	90508	40×80×49.2	0.64
UCT209	90509	45×85×49.2	0.68
UCT210	90510	50×90×51.6	0.8
UCT211	90511	55×100×55.6	1.12
UCT212	90512	60×110×65.1	1.54
UCT213	90513	65×120×65.1	1.86
UCT214	90514	70×125×74.6	2.05
UCT215	90515	75×130×77.8	2.21
UCT216	90516	80×140×82.6	2.79
UCT217	90517	85×150×85.7	3.38
UCT218	90518	90×160×96	4.45
UCT220	90520	100×180×108	4.5

ASAHI Pillow Block Bearing Housing Application:

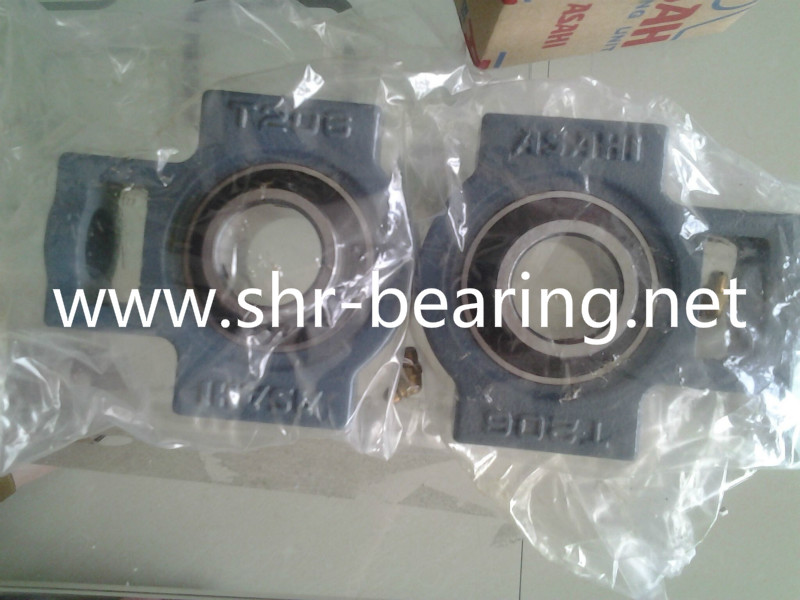

ASAHI Pillow Block Bearing Pictures:
