NSK precision CNC bearing 7201CTYNSULP4 7201CTYNDBLP5
Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!
Description
Technical
Application
Pictures
NSK precision CNC bearing 7201CTYNSULP4 7201CTYNDBLP5
NSK High precision angular contact ball bearings 7201CTYNSULP4 facilitate high-speed rotation in ultrahigh-speed applications, which require extremely reliable oil-air lubrication, while achieving environmental friendliness and energy conservation. NSK 7201CTYNSULP4 is super Precision 4 grade bearing, they have the features of high accuracy, high rotational speed and high rigidity. SUL type bearing are universal matched, they are easily interchangeable with replaced bearings.
NSK High precision angular contact ball bearings 7201CTYNSULP4 facilitate high-speed rotation in ultrahigh-speed applications, which require extremely reliable oil-air lubrication, while achieving environmental friendliness and energy conservation. NSK 7201CTYNSULP4 is super Precision 4 grade bearing, they have the features of high accuracy, high rotational speed and high rigidity. SUL type bearing are universal matched, they are easily interchangeable with replaced bearings.
| Commodity name | Precision machine tool bearing Angular contact ball bearing |
| Bearing model | 7201CTYNSULP4 7201CTYNDULP4 |
| Bearing specification | 12*32*10 mm bearing |
| Weight /KG | 0.036 KG |
| Greese/Oil | As you requirement ,such as SRL,PS2,Alvania R12 and so on |
| Bearing Series |
7xxx,B7xxx,Q,QJ,QJF,719xx,32xx,33xx, |
| Ring Materical | Chrome Steel,Carbon steel, Stainless steel |
| Tolerance grade | GB/T307.1-205 |
| ID Size | 10mm-280mm |
| Quality standard | machine tool bearing 7200C passed ISO 9001:2008 standard |
| Bearing Precision | P0,P6,P5 ,P4 |
| Steel pressed cage | Bending claw form or rivet form |
| Delivert Date | Normally ready goods and stock within 7 days |
| Payment Terms | A:30% T/T In Advance,70% Against Copy Of B/L B: 100% L/C At Sight C: Paypal D: Western Union |
| Application |
Home appliances, low noise and high speed electric motors,automotive components,pumps,machinery. |
| Bearing Service | machine tool bearing can offer OEM service |
| Package |
Single box or according to buyers requirement |

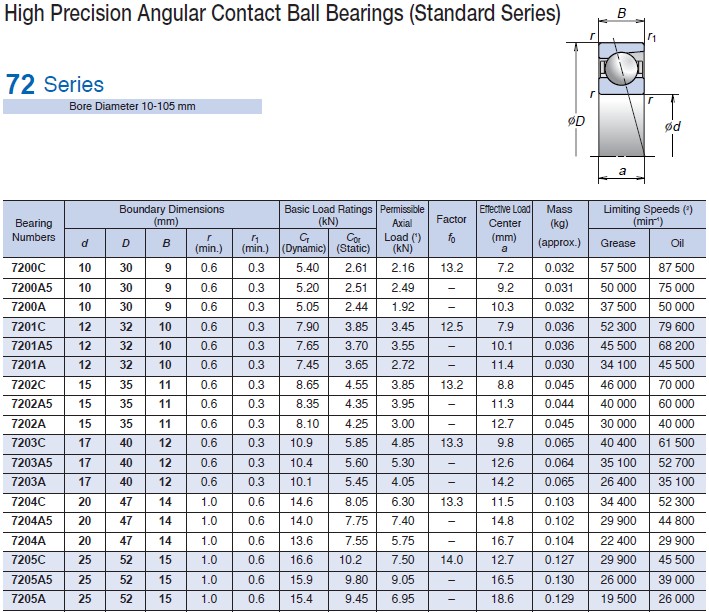

NSK precision CNC bearing 7201CTYNSULP4 7201CTYNDBLP5 bearing models series
NSK Super precision angular contact ball bearings designation is indicating as below.
Bearing series: 70 series, 72 series, 79 series
Contact angle: A 30·C , A5: 25·C, C : 15 ·C
Material: Blank symbol: Bearing steel(SUJ2), SN24:Ceramic Balls
Retainer: TR: Phenolic Cage, TYN: Polyamide cage
Seal: No Symbol: Open type, V1V:Non Contact Rubber seal
Mounting configuration: SU: single universal , DU: Duplex Universal
DB,DF DT: Duplex Arrangement; DBD,DFD,DTD,DUD: Triplex Arrangement
DBB,DFF,DBT,DFT,DTT,QU: Quad Arrangement
Preload: L: light, M: Medium, H: Heavy
Precision: P4: ISO class4 (ABEC7) , P3: Dimensions ISO class4, Running accuracy ISO class 2 P2: ISO class 2 (ABEC9)
NSK precision bearings for CNC models in 79 70 72 73 series :
|
7900CTYNSULP4 |
7000CTYNSULP4 |
7200CTYNSULP4 |
7300CTYNSULP4 |
|
7901CTYNSULP4 |
7001CTYNSULP4 |
7201CTYNSULP4 |
7301CTYNSULP4 |
|
7902CTYNSULP4 |
7002CTYNSULP4 |
7202CTYNSULP4 |
7302CTYNSULP4 |
|
7903CTYNSULP4 |
7003CTYNSULP4 |
7203CTYNSULP4 |
7303CTYNSULP4 |
|
7904CTYNSULP4 |
7004CTYNSULP4 |
7204CTYNSULP4 |
7304CTYNSULP4 |
|
7905CTYNSULP4 |
7005CTYNSULP4 |
7205CTYNSULP4 |
7305CTYNSULP4 |
|
7906CTYNSULP4 |
7006CTYNSULP4 |
7206CTYNSULP4 |
7306CTYNSULP4 |
|
7907CTYNSULP4 |
7007CTYNSULP4 |
7207CTYNSULP4 |
7307CTYNSULP4 |
|
7908CTYNSULP4 |
7008CTYNSULP4 |
7208CTYNSULP4 |
7308CTYNSULP4 |
|
7909CTYNSULP4 |
7009CTYNSULP4 |
7209CTYNSULP4 |
7309CTYNSULP4 |
|
7910CTYNSULP4 |
7010CTYNSULP4 |
7210CTYNSULP4 |
7310CTYNSULP4 |
|
7911CTYNSULP4 |
7011CTYNSULP4 |
7211CTYNSULP4 |
7311CTYNSULP4 |
|
7912CTYNSULP4 |
7012CTYNSULP4 |
7212CTYNSULP4 |
7312CTYNSULP4 |
|
7913CTYNSULP4 |
7013CTYNSULP4 |
7213CTYNSULP4 |
7313CTYNSULP4 |
|
7914CTYNSULP4 |
7014CTYNSULP4 |
7214CTYNSULP4 |
7314CTYNSULP4 |
|
7915CTYNSULP4 |
7015CTYNSULP4 |
7215CTYNSULP4 |
7315CTYNSULP4 |
|
7916CTYNSULP4 |
7016CTYNSULP4 |
7216CTYNSULP4 |
7316CTYNSULP4 |
|
7917CTYNSULP4 |
7017CTYNSULP4 |
7217CTYNSULP4 |
7317CTYNSULP4 |
|
7918CTYNSULP4 |
7018CTYNSULP4 |
7218CTYNSULP4 |
7318CTYNSULP4 |
|
7919CTYNSULP4 |
7019CTYNSULP4 |
7219CTYNSULP4 |
7319CTYNSULP4 |
|
7920CTYNSULP4 |
7020CTYNSULP4 |
7220CTYNSULP4 |
7320CTYNSULP4 |
|
7921CTYNSULP4 |
7021CTYNSULP4 |
7221CTYNSULP4 |
7321CTYNSULP4 |
|
7922CTYNSULP4 |
7022CTYNSULP4 |
7222CTYNSULP4 |
7322CTYNSULP4 |
|
7924CTYNSULP4 |
7024CTYNSULP4 |
7224CTYNSULP4 |
7324CTYNSULP4 |
|
7926CTYNSULP4 |
7026CTYNSULP4 |
7226CTYNSULP4 |
7326CTYNSULP4 |
|
7928CTYNSULP4 |
7028CTYNSULP4 |
7228CTYNSULP4 |
7328CTYNSULP4 |
|
7930CTYNSULP4 |
7030CTYNSULP4 |
7230CTYNSULP4 |
7330CTYNSULP4 |
|
7932CTYNSULP4 |
7032CTYNSULP4 |
7232CTYNSULP4 |
7332CTYNSULP4 |
|
7933CTYNSULP4 |
7034CTYNSULP4 |
7234CTYNSULP4 |
7334CTYNSULP4 |
|
7934CTYNSULP4 |
7036CTYNSULP4 |
7236CTYNSULP4 |
7336CTYNSULP4 |
|
7936CTYNSULP4 |
7038CTYNSULP4 |
7238CTYNSULP4 |
7338CTYNSULP4 |
|
7938CTYNSULP4 |
7040CTYNSULP4 |
7240CTYNSULP4 |
7340CTYNSULP4 |
|
7940CTYNSULP4 |
7044CTYNSULP4 |
7244CTYNSULP4 |
7344CTYNSULP4 |
NSK precision CNC bearing 7201CTYNSULP4 7201CTYNDBLP5 application and packings

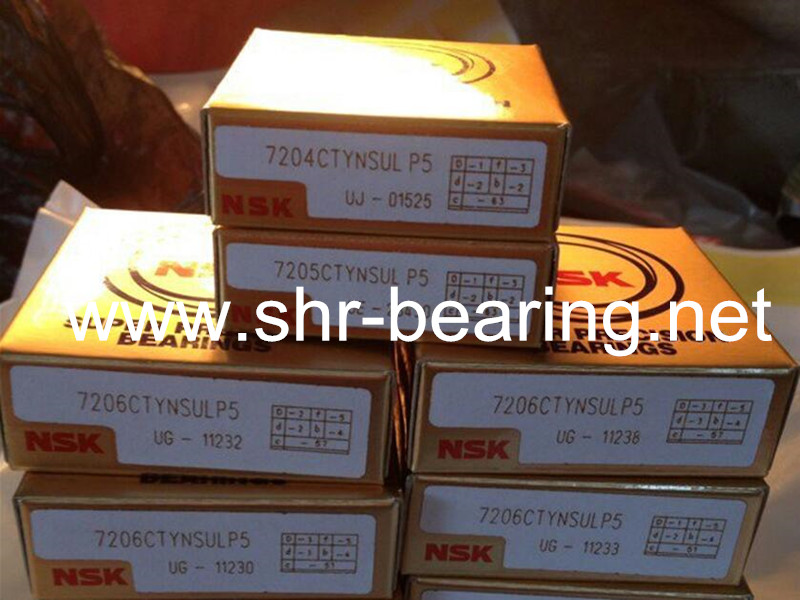

Packing of NSK CNC machine tool spindle bearings precision bearings :
Packing of NSK CNC machine tool spindle bearings precision bearings :
1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2):Big sizes:Wooden Case
NSK precision CNC bearing 7201CTYNSULP4 7201CTYNDBLP5 photos
