SYBR 29412E thrust roller type spherical roller thrust bearing

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!

Description

Technical

Application

Pictures

SYBR 29412E thrust roller type spherical roller thrust bearing

A spherical roller thrust bearing is a rolling-element bearing of thrust type that permits rotation with low friction, and permits angular misalignment. The bearing is designed to take radial loads, and heavy axial loads in one direction. Typically these bearings support a rotating shaft in the [bore] of the shaft washer that may be misaligned in respect to the housing washer. The misalignment is possible due to the spherical internal shape of the house washer. Bearing rings and rolling elements can be made of a number of different materials, but the most common is "chrome steel", a material with approximately 1.5% chrome content. Such "chrome steel" has been standardized by a number of authorities, and there are therefore a number of similar materials, such as: AISI 52100 (USA), 100CR6 (Germany), SUJ2 (Japan) and GCR15 (China)

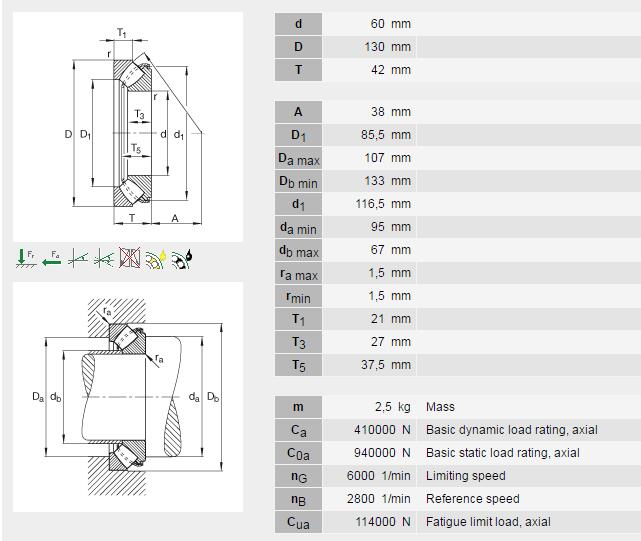

Roller Bearing 29412E draft :

SYBR 29412E thrust roller type spherical roller thrust bearing models series :

Bearing No.		Size(mm)
New	Old	d	D	T	E
29413	9039413	65	140	45	42
29414	9039414	70	150	48	44
29415	9039415	75	160	51	47
29416	9039416	80	170	54	50
29317	9039317	85	150	39	50
29417	9039417		180	58	54
29318	9039318	90	155	39	52
29418	9069418		190	60	56
29320	9039320	100	170	42	58
29420	9039420		210	67	62
29322	9039322	110	190	48	64
29422	9039422		230	73	69
29324	9039324	120	210	54	70
29424	9039424		250	78	74
29326	9039326	130	225	58	76
29426	9039426		270	85	81
29328	9039328	140	240	60	82
29428	9039428		280	85	86

SYBR 29412E thrust roller type spherical roller thrust bearing applications :

Packing :

1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets;

2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets

3. As the clients' requirement

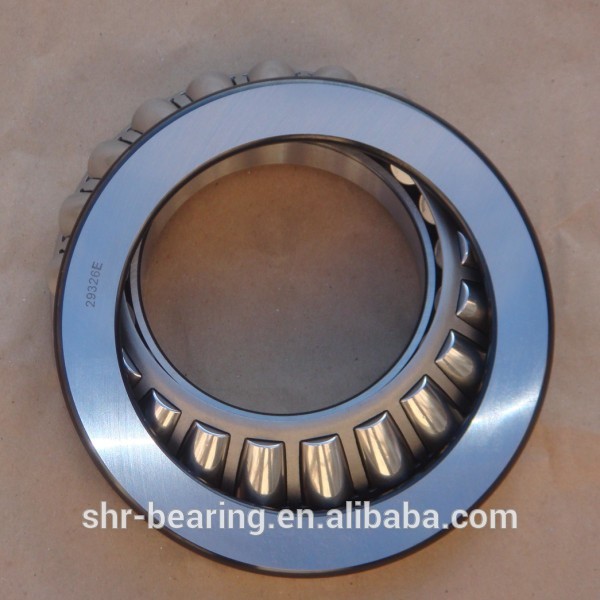

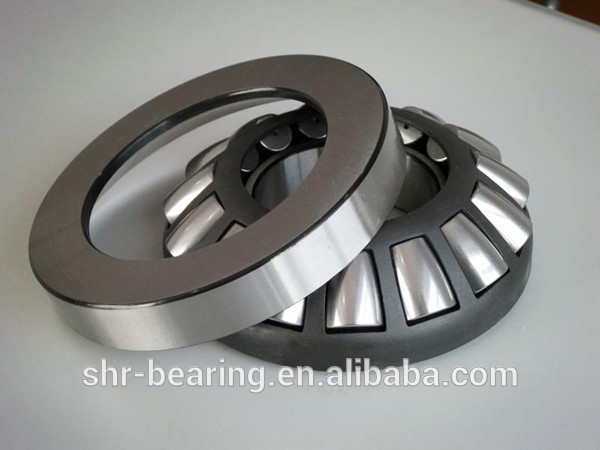

SYBR 29412E thrust roller type spherical roller thrust bearing photos :
