SYBR AXK1024 axial needle roller and cage assemblies Needle Thrust Bearing
Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!
Description
Technical
Application
Pictures
SYBR AXK1024 axial needle roller and cage assemblies Needle Thrust Bearing
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence.
Benefits: Cost effective thrust solution, wide range, low profile, high load bearing
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence.
Benefits: Cost effective thrust solution, wide range, low profile, high load bearing

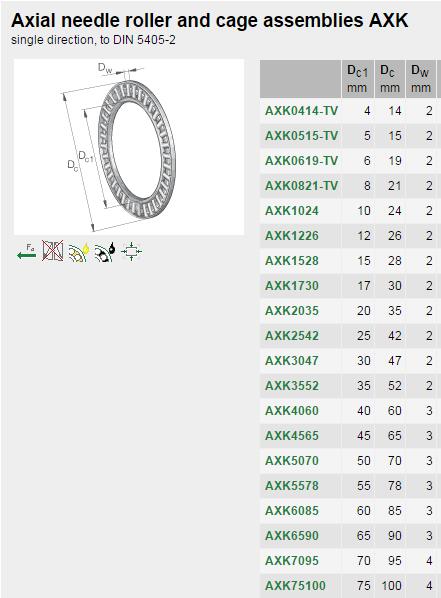

SYBR AXK1024 axial needle roller and cage assemblies Needle Thrust Bearing models series :
SYBR AXK1024 axial needle roller and cage assemblies Needle Thrust Bearing applicaitons
- air-conditioner compressors
- bulldozer blades
- overhead traveling cranes
- gearboxes
- machine tool spindles
- copying machines and many more

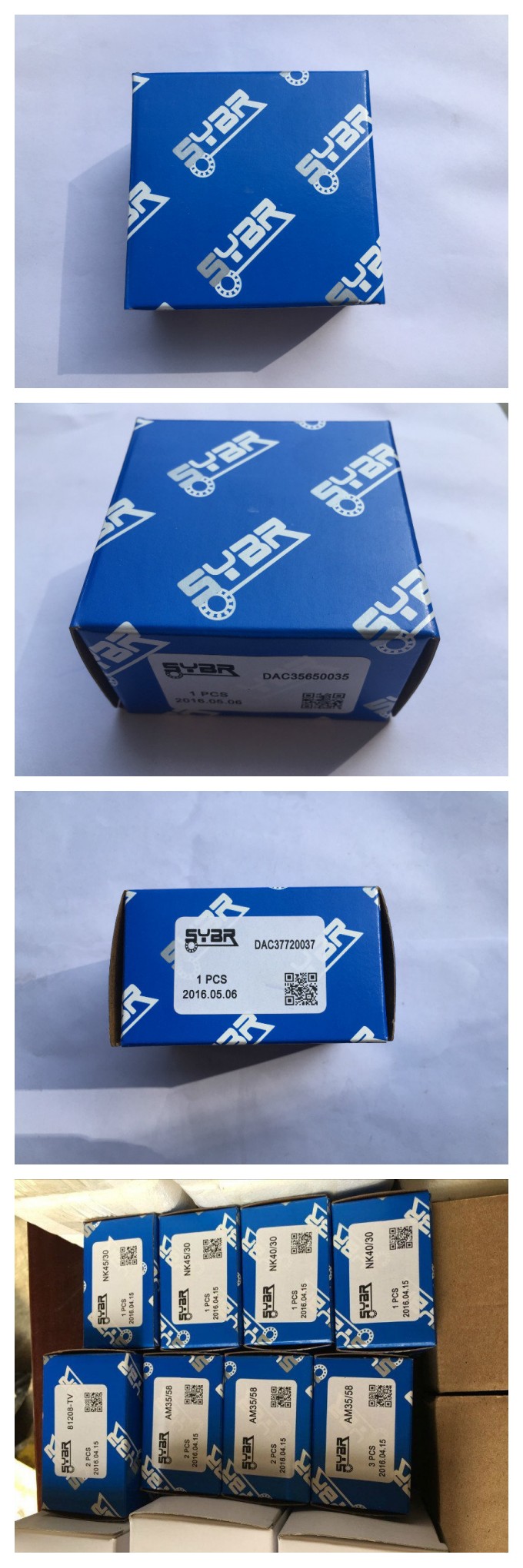

Packing :
1)Neutral package & wooden package
2)Carton package+pallet
3)Wooden package+pallet
4)As customer request
2)Carton package+pallet
3)Wooden package+pallet
4)As customer request
Anti-rust oil + plastic bag + paper box +carton +pallet

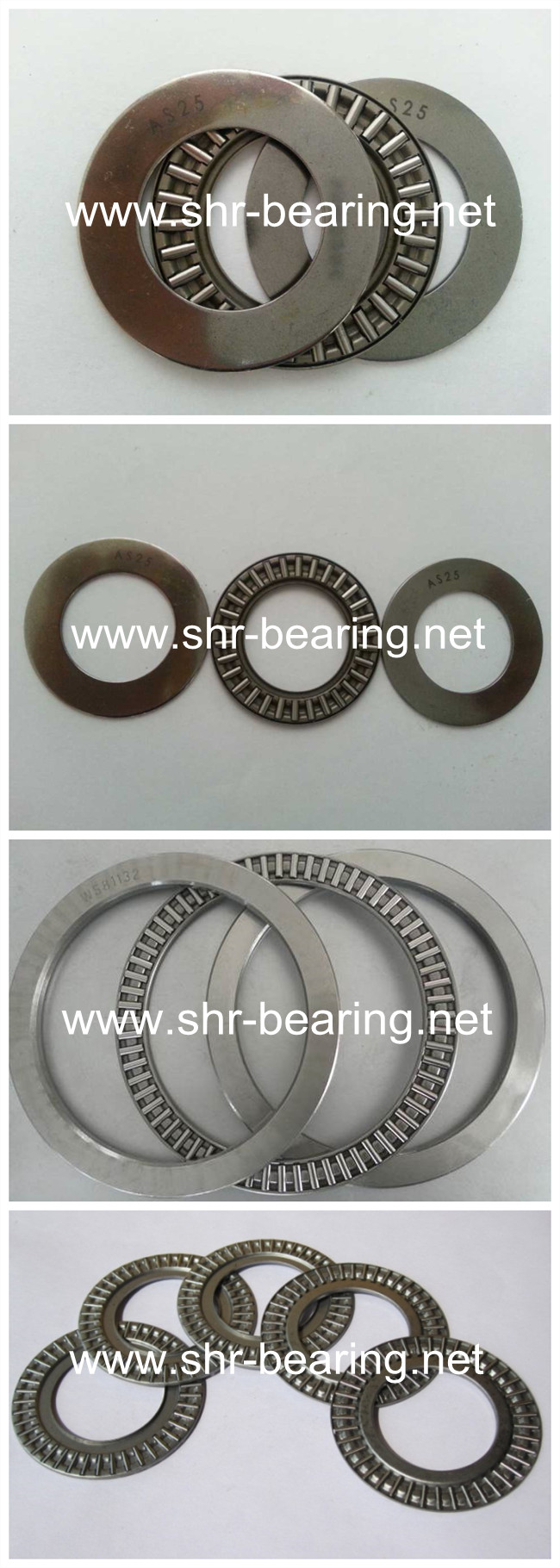

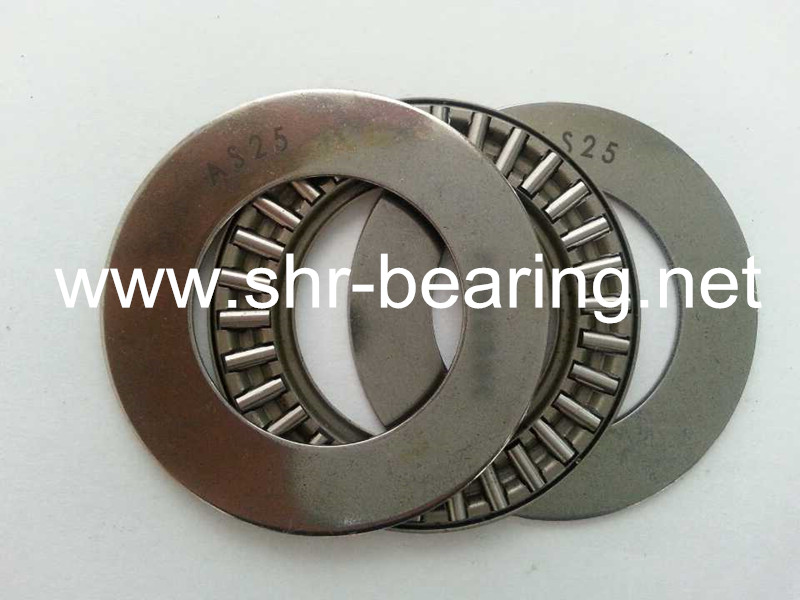

SYBR AXK1024 axial needle roller and cage assemblies Needle Thrust Bearing photos :
